Setup F5 BIG-IP Next for Kubernetes¶
The Kubernetes cluster is now ready for BIG-IP Next for Kubernetes installation.
1. Taint and Label¶
This lab assumes that DPU is dedicated for BNK installation. In order to prevent other general workload from scheduling on DPU node add the following taint.
Note
Replace
Bash Session
host# kubectl taint node <dpu-node-name> dpu=true:NoSchedule
In this lab, BNK Dataplane is going to be installed as a Kubernetes daemonset and scheduled on nodes with the label app=f5-tmm. Add the label to DPU node
Bash Session
host# kubectl label node <dpu-node-name> app=f5-tmm
2. Kubernetes Namespaces¶
The two main Kubernetes namespaces categories we use in this guide; Product, and Tenant namespaces.
Product Namespaces¶
Used to install core components of BNK. In this lab guide, the BIG-IP Next for Kubernetes product will use 2 namespaces
- f5-utils: All shared components for BIG-IP Next installation will use this namespace.
- default: Operator, BIG-IP Next control plane, and BIG-IP Next Dataplane components will use this namespace.
Note
default namespace is available by default after Kubernetes installation. We need to create only the f5-utils namespace.
Create Product Namespaces
host# kubectl create ns f5-utils
Tenant Namespaces¶
F5 BNK watches specific Kubernetes namespaces for tenant services onboarding and configuring ingress/egress paths for these services.
Note
As of the writing of this document BNK requires the namespaces to be created to product installation. This requirement may change in future.
In this guide we use two tenant namespaces, red and blue.
Create required namespaces:
Create Tenant Namespaces
host# for ns in red blue; do kubectl create ns $ns; done
3. Authentication with F5 Artifact Registery (FAR)¶
To access BNK product images, you must authenticate with the F5 Artifact Registry (FAR). In this section, we will go through obtaining the authentication key and creating Kubernetes pull secret.
- Login to the MyF5.

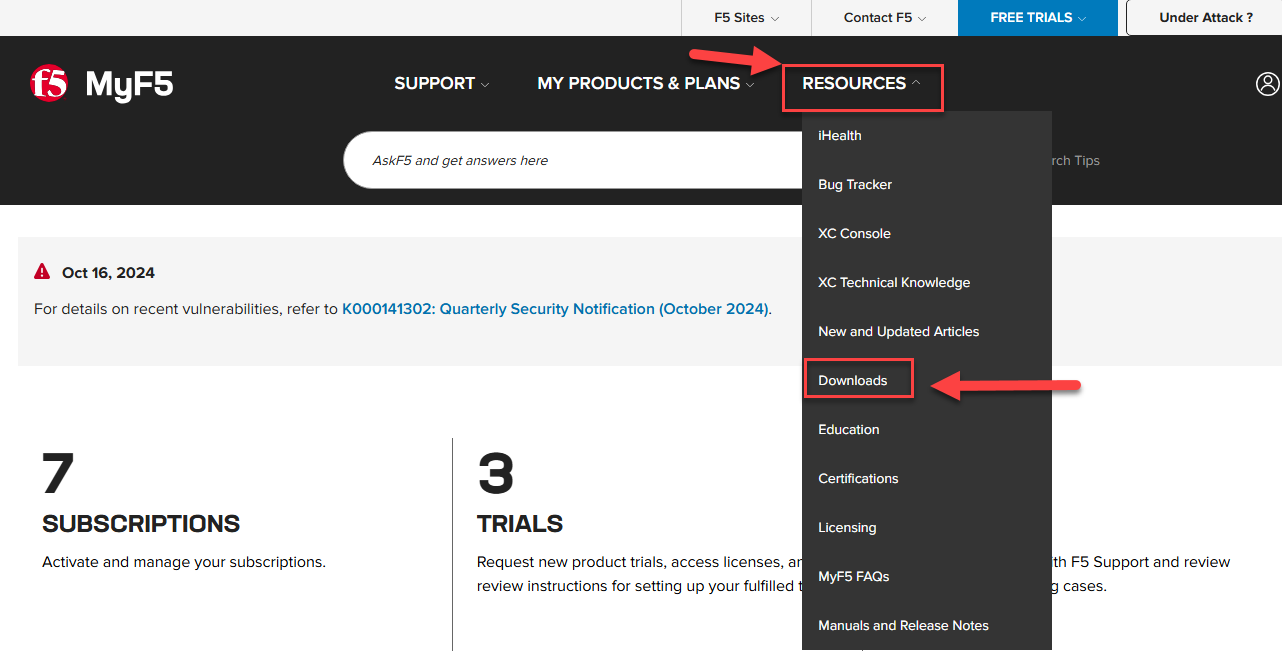

- Navigate to Resources and click Downloads.

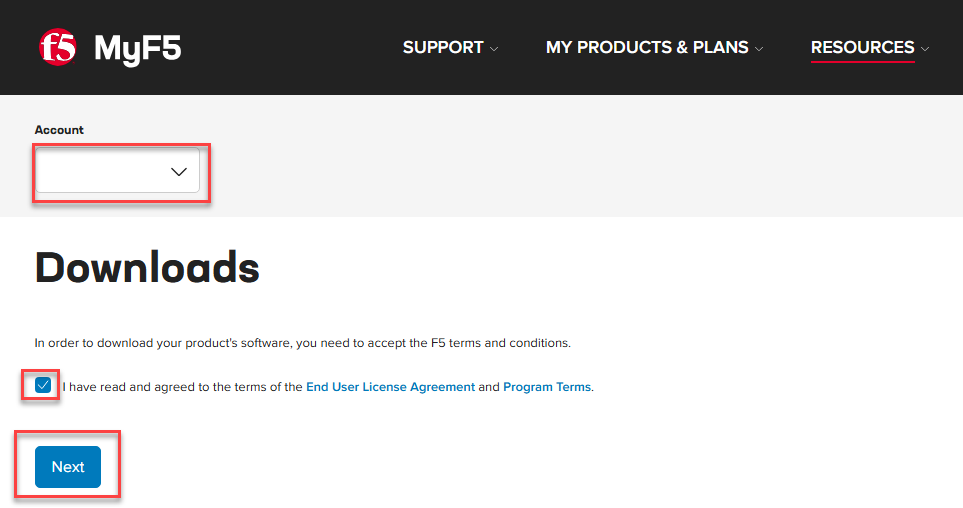

- Ensure account is selected then review the End User License Agreement and the Program Terms and click to check the box for
I have read and agreed to the terms of the End User License Agreement and Program Terms.

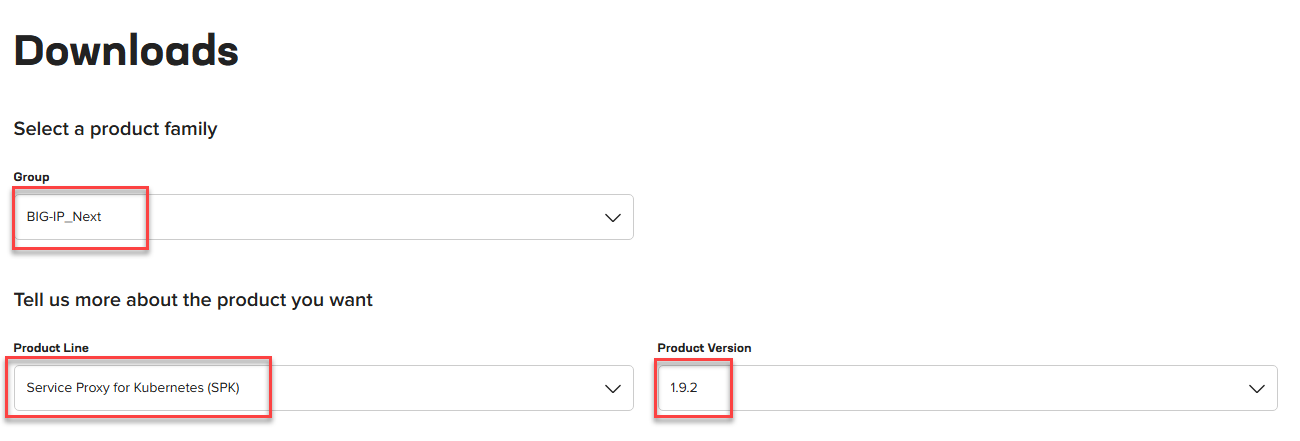

- For Group select BIT-IP_Next, and Service Proxy for Kubernetes (SPK) in Product Line, and 1.9.2 for Product Version.

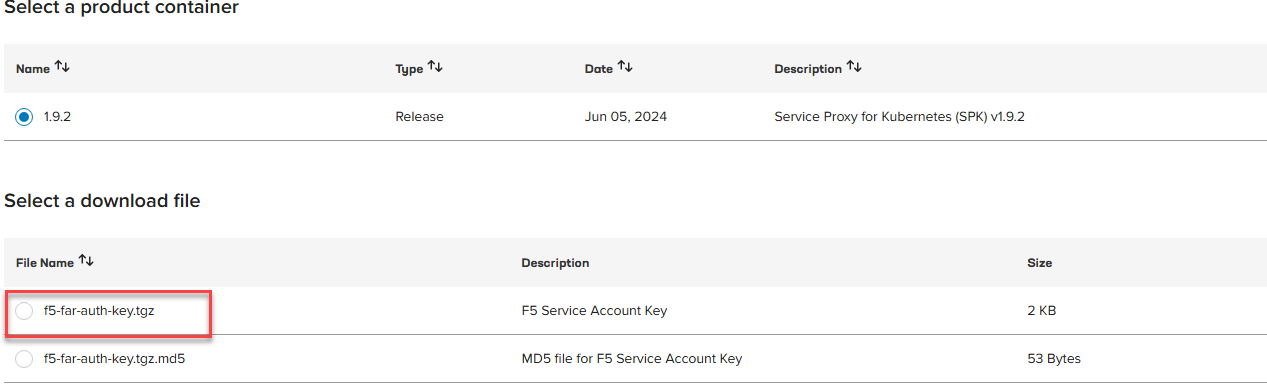

- Select f5-far-auth-key.tgz to download.

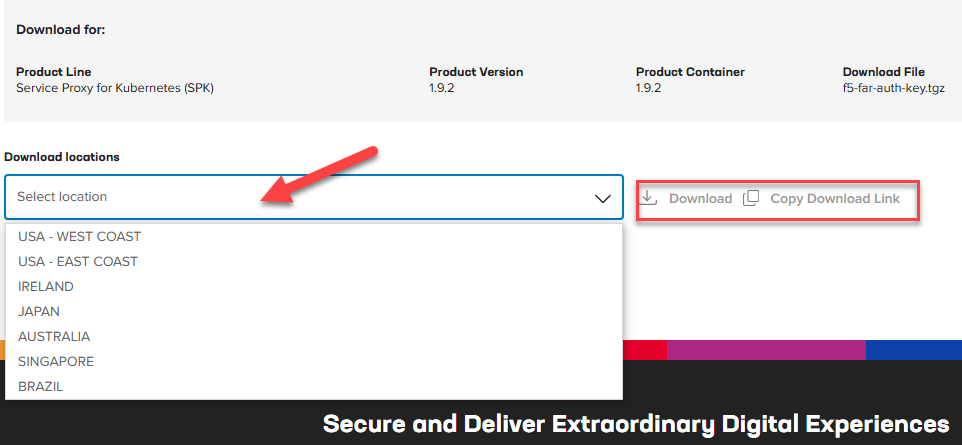

- Choose a location to download from and then download the file or copy link and download on the host linux.
- Copy the downloaded file
zxvf f5-far-auth-key.tgzto host dpu-install directory and expand to see a file namedcne_pull_64.json. That is the file that contains FAR authentication key. - Use the far-kubernetes-secret.sh generate and install required Kubernetes pull secrets for FAR images. Bash Session
host# ./far-kubernetes-secret.sh - Login to FAR helm registery from host terminal where kubectl and helm commands are available Bash Session
host# cat cne_pull_64.json | helm registry login -u _json_key_base64 --password-stdin https://repo.f5.com
4. Cluster Wide Controller requirements¶
The Cluster Wide Controller (CWC) component manages license registeration and debug API. In this release there are some manual requirements that are needed. The steps also can be found in F5 guide to generate and install required certificates and ConfigMap.
Generate certificates that will be used to communicate with CWC component API, by pulling the script from F5 repo then generating certs for the f5-utils namespace service as follows.
-
Pull and extract the chart containing cert generation scripts Install required package "make"
Bash Sessionhost# apt-get install -y makeExample Output
Bash Sessionhost# apt-get install -y make Reading package lists... Done Building dependency tree... Done Reading state information... Done Suggested packages: make-doc The following NEW packages will be installed: make 0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded. Need to get 180 kB of archives. After this operation, 426 kB of additional disk space will be used. Get:1 http://archive.ubuntu.com/ubuntu jammy/main amd64 make amd64 4.3-4.1build1 [180 kB] Fetched 180 kB in 1s (218 kB/s) Selecting previously unselected package make. (Reading database ... 80515 files and directories currently installed.) Preparing to unpack .../make_4.3-4.1build1_amd64.deb ... Unpacking make (4.3-4.1build1) ... Setting up make (4.3-4.1build1) ... Processing triggers for man-db (2.10.2-1) ... Scanning processes... Scanning linux images...Bash Sessionhost# helm pull oci://repo.f5.com/utils/f5-cert-gen --version 0.9.1 host# tar zxvf f5-cert-gen-0.9.1.tgzExample Output
Bash Sessionhost# helm pull oci://repo.f5.com/utils/f5-cert-gen --version 0.9.1 Pulled: repo.f5.com/utils/f5-cert-gen:0.9.1 Digest: sha256:89d283a7b2fef651a29baf1172c590d45fbd1e522fa90207ecd73d440708ad34 host# tar zxvf f5-cert-gen-0.9.1.tgz cert-gen/ cert-gen/LICENSE cert-gen/README.md cert-gen/tls_gen/ cert-gen/tls_gen/tls-gen.md cert-gen/tls_gen/__pycache__/ cert-gen/tls_gen/__pycache__/cli.cpython-39.pyc cert-gen/tls_gen/__pycache__/info.cpython-39.pyc cert-gen/tls_gen/__pycache__/__init__.cpython-39.pyc cert-gen/tls_gen/__pycache__/verify.cpython-39.pyc cert-gen/tls_gen/__pycache__/paths.cpython-39.pyc cert-gen/tls_gen/__pycache__/extension_gen.cpython-39.pyc cert-gen/tls_gen/__pycache__/gen.cpython-39.pyc cert-gen/tls_gen/cli.py cert-gen/tls_gen/extension_gen.py cert-gen/tls_gen/__init__.py cert-gen/tls_gen/paths.py cert-gen/tls_gen/info.py cert-gen/tls_gen/verify.py cert-gen/tls_gen/gen.py cert-gen/gen_cert.sh cert-gen/Chart.yaml cert-gen/openssl-cert-gen/ cert-gen/openssl-cert-gen/client-cert.conf cert-gen/openssl-cert-gen/README.md cert-gen/openssl-cert-gen/csr.conf cert-gen/openssl-cert-gen/client-csr.conf cert-gen/openssl-cert-gen/server-cert.conf cert-gen/openssl-cert-gen/gen-yaml.sh cert-gen/openssl-cert-gen/gen-certs.sh cert-gen/basic/ cert-gen/basic/profile.py cert-gen/basic/.DS_Store cert-gen/basic/openssl.cnf cert-gen/basic/grpc/ cert-gen/basic/grpc/grpc-service.ext cert-gen/basic/grpc/validation-service.ext cert-gen/basic/grpc/f5-fqdn-resolver.ext cert-gen/basic/grpc/client.ext cert-gen/basic/grpc/grpc.mk cert-gen/basic/CertificateGenerator.md cert-gen/basic/Makefile cert-gen/common.mk -
Generate the API self-signed certificates. At the end of this step the script would have generated to main secret files Generating
cwc-license-certs.yamlandcwc-license-client-certs.yamlBash Sessionhost# sh cert-gen/gen_cert.sh -s=api-server -a=f5-spk-cwc.f5-utils -n=1Example Output
Bash Sessionhost# sh cert-gen/gen_cert.sh -s=api-server -a=f5-spk-cwc.f5-utils -n=1 ------------------------------------------------------------------ Service = api-server Subject Alternate Name = f5-spk-cwc.f5-utils Working directory = /root/bnk-dpu-install/api-server-secrets ------------------------------------------------------------------ rm: cannot remove '/root/bnk-dpu-install/api-server-secrets': No such file or directory Generating Secrets ... python3 profile.py regenerate --password "" \ --common-name f5net \ --client-alt-name client \ --server-alt-name f5-spk-cwc.f5-utils \ --days-of-validity 3650 \ --client-certs 1 \ --key-bits 2048 Creating 1 client extensions... Will generate a root CA and two certificate/key pairs (server and client) => [openssl_req] .+.......+.....+.............+..+.+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*...............+.+..+....+..............+......+...+.+..+.......+.....+...+.......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*..............+...+.....+.+..+............+.......+...........+.........+.+............+..................+.....+....+.........+.....+.+...+.....+.+.........+...........+......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ .+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*..+..........+...........+.+.....+.+.....+....+......+.....+....+...+......+..+.......+..+..........+........+...+............+.......+.........+......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ ----- => [openssl_x509] Will generate leaf certificate and key pair for server Using f5net for Common Name (CN) Using parent certificate path at /root/bnk-dpu-install/cert-gen/basic/testca/cacert.pem Using parent key path at /root/bnk-dpu-install/cert-gen/basic/testca/private/cakey.pem Will use RSA... => [openssl_genpkey] ..+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*....+.........+..+......+............+.+..+....+........+.+.....+......+.........+.+......+..+...+.......+........+...+.......+.....+.......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*..........+...+...+..................+......+.+...............+..+......+.+......+..+......+.+.....+.+.....+.........+....+.........+..+....+..+...+.........+...+..................+............+....+......+.....+...+....+........+...+.......+...+...........+...+.+......+......+.........+.....+.+..+.............+..+......+......+......+....+......+...+..+..........+..+..........+.....+.+..+...+....+...+.....+....+.........+.....+......+....+...........+...+..........+...+.....+.........+.+.........+........+..........+...............+............+.....+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ ...+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.+.........+......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.+...................+......+..+.+.....+.....................+...+..........+..+.........+....+...+..+...+...............+.......+........+...+.+.....+.........+.+.....+.+.........+...+.....+......+....+...+........+.....................+...+...+.............+.....+....+..+...+.+.....+...............+......+.+............+...+........+......+...+.+...........................+..............+...............+.+..+.+......+........+...+....+.....+.+..............+...+...+.............+.....+.+...+...+........+....+...+...+.....+......+...+......+.+...+..+......+...+.+.....+.+.....+........................+.........+.+......+..+.+..+.......+...+..+.......+.........+..+....+...............+...+........+............+.......+...+.....+...+.......+........+........................+.+........+.+.....+.+..+.......+......+..............+.+..+..........+...............+...+............+..+...+.......+......+...+..+.........+......+.............+..+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ => [openssl_req] ----- => [openssl_ca] Using configuration from /tmp/tmpnso_b2s4 801B7E13897F0000:error:0700006C:configuration file routines:NCONF_get_string:no value:../crypto/conf/conf_lib.c:315:group=<NULL> name=unique_subject Check that the request matches the signature Signature ok The Subject's Distinguished Name is as follows commonName :ASN.1 12:'f5net' organizationName :ASN.1 12:'server' localityName :ASN.1 12:'$$$$' Certificate is to be certified until Jan 5 18:51:43 2035 GMT (3650 days) Write out database with 1 new entries Data Base Updated => [openssl_pkcs12] Will generate leaf certificate and key pair for client Using f5net for Common Name (CN) Using parent certificate path at /root/bnk-dpu-install/cert-gen/basic/testca/cacert.pem Using parent key path at /root/bnk-dpu-install/cert-gen/basic/testca/private/cakey.pem Will use RSA... => [openssl_genpkey] ......+.+......+...+..+....+...+..+...+...+...+...............+............+............+.+.........+...+........+....+...........+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.....+.+........+......+....+......+.....+.+.....+...+....+...........+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.....+.+..+..........+..+.......+.........+......+.....+....+.....+.........+..........+..+.+........+..........+..+.........+....+..+...+.......+........+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ .............+.........+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*.+.........+.+...........+.+...+.....+.......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++*......+.......+..+..........+.........+.....+.......+.........+.....................+..+...+....+...+...+.....+.........+....+............+...+..............+......+.......+.....+...+.....................+.+..+......+.+....................+.+...+..+...............+...............+...+.+...+...........+.+...+......+......+......+..+............+...+......+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ => [openssl_req] ----- => [openssl_ca] Using configuration from /tmp/tmpnso_b2s4 Check that the request matches the signature Signature ok The Subject's Distinguished Name is as follows commonName :ASN.1 12:'f5net' organizationName :ASN.1 12:'client' localityName :ASN.1 12:'$$$$' Certificate is to be certified until Jan 5 18:51:44 2035 GMT (3650 days) Write out database with 1 new entries Data Base Updated => [openssl_pkcs12] Done! Find generated certificates and private keys under ./result! python3 profile.py verify --client-certs 1 Will verify generated server certificate against the CA... Will verify server certificate against root CA /root/bnk-dpu-install/cert-gen/basic/result/server_certificate.pem: OK Will verify generated client certificate against the CA... Will verify client certificate against root CA /root/bnk-dpu-install/cert-gen/basic/result/client_certificate.pem: OK Copying secrets ... Generating /root/bnk-dpu-install/cwc-license-certs.yaml Generating /root/bnk-dpu-install/cwc-license-client-certs.yaml -
Install secrets.
Bash Sessionhost# kubectl apply -f cwc-license-certs.yaml -n f5-utils host# kubectl apply -f cwc-license-client-certs.yaml -n f5-utils -
Install the cwc-qkview-cm.yaml qkview config map file.
YAMLapiVersion: v1 kind: ConfigMap metadata: name: cwc-qkview-cm namespace: f5-utils -
Install the cpcl-non-prod.yaml file that contains Json Key Set for license activation
YAMLapiVersion: v1 kind: ConfigMap metadata: name: cpcl-key-cm namespace: f5-utils data: jwt.key: | { "keys": [ { "kid": "v1", "alg": "RS512", "kty": "RSA", "n": "26FcA1269RC6WNgRghIB7X772zTTts02NsqqN-_keSz5FVq1Ekg151NFu_53Tgz1FGsUiX4OUj-fOmuhK9uzkQv0zYZgXY6zmRo_9P-QgiycuFo7DWquDwEx4rZiMxXwlA9ER56s8PDdbXyfi3ceMV-aUQZFqMiU6gOTl5d7uMfskocPF4ja8ZRrLlXAzzRIR62VgbQa-3sT0_SZ4w1ME4eLzO1yb-Ex9va4JnwToVLSKfsZp6jYs9nvAGjZ8aN2_lzBx8uiZ1HQozGqcf0AEjU-FEY73Umvmyvzd4woQLQlbvyrRtL9_IkL2ySdQ9Znh2lXBdsmA9cLz4ZAYPdmvcjsyBaZmh15EOkczpVVan1_VVD4o28uLDpzQVDk_GNUYoZIRsuOzuKvzih0gkv-StH29umHbdKXrUhlMWM1zyaxz8gkHatn-g5uh70WwVwqPtfHaNrQ0fFiWoyGVOA_-XqsJWA9NLJorewp9HOVlyF8qzu5s9cFO4UGQas0fF2QR9QvhgCymK7iWbEFF3PXqUQTLfFsITgix3mmeXVYC3ODsPKvcFhNBqQxmeXM04N2XMLluz2qp581NUJygWAAfq7la0ylDJ1MtefyESD8SBs1at2a8kSEBJCdCtAuNX2q33JjxQP3AiGvHcKEAjd1uaNeSgdHC93BzT3u0gbh2Ok", "e": "AQAB", "x5c": [ "MIIFqDCCBJCgAwIBAgIRAK+LbrS2gkaJSeoUQpMK0LswDQYJKoZIhvcNAQELBQAwgacxCzAJBgNVBAYTAlVTMRMwEQYDVQQIDApXYXNoaW5ndG9uMRowGAYDVQQKDBFGNSBOZXR3b3JrcywgSW5jLjEeMBwGA1UECwwVQ2VydGlmaWNhdGUgQXV0aG9yaXR5MTUwMwYDVQQDDCxGNSBTVEcgSXNzdWluZyBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkgVEVFTSBWMTEQMA4GA1UEBwwHU2VhdHRsZTAeFw0yMTEwMTEyMzI0NTFaFw0yNjEwMTEwMDI0NTFaMIGBMQswCQYDVQQGEwJVUzETMBEGA1UECAwKV2FzaGluZ3RvbjEQMA4GA1UEBwwHU2VhdHRsZTEaMBgGA1UECgwRRjUgTmV0d29ya3MsIEluYy4xDTALBgNVBAsMBFRFRU0xIDAeBgNVBAMMF0Y1IFNURyBURUVNIEpXVCBBdXRoIHYxMIICIjANBgkqhkiG9w0BAQEFAAOCAg8AMIICCgKCAgEA26FcA1269RC6WNgRghIB7X772zTTts02NsqqN+/keSz5FVq1Ekg151NFu/53Tgz1FGsUiX4OUj+fOmuhK9uzkQv0zYZgXY6zmRo/9P+QgiycuFo7DWquDwEx4rZiMxXwlA9ER56s8PDdbXyfi3ceMV+aUQZFqMiU6gOTl5d7uMfskocPF4ja8ZRrLlXAzzRIR62VgbQa+3sT0/SZ4w1ME4eLzO1yb+Ex9va4JnwToVLSKfsZp6jYs9nvAGjZ8aN2/lzBx8uiZ1HQozGqcf0AEjU+FEY73Umvmyvzd4woQLQlbvyrRtL9/IkL2ySdQ9Znh2lXBdsmA9cLz4ZAYPdmvcjsyBaZmh15EOkczpVVan1/VVD4o28uLDpzQVDk/GNUYoZIRsuOzuKvzih0gkv+StH29umHbdKXrUhlMWM1zyaxz8gkHatn+g5uh70WwVwqPtfHaNrQ0fFiWoyGVOA/+XqsJWA9NLJorewp9HOVlyF8qzu5s9cFO4UGQas0fF2QR9QvhgCymK7iWbEFF3PXqUQTLfFsITgix3mmeXVYC3ODsPKvcFhNBqQxmeXM04N2XMLluz2qp581NUJygWAAfq7la0ylDJ1MtefyESD8SBs1at2a8kSEBJCdCtAuNX2q33JjxQP3AiGvHcKEAjd1uaNeSgdHC93BzT3u0gbh2OkCAwEAAaOB8jCB7zAJBgNVHRMEAjAAMB8GA1UdIwQYMBaAFLDdK33QD9FdLnrVFw+ZAkQUayxCMB0GA1UdDgQWBBQw/hNgf2AoJAF086NV7JGQj+B2NzAOBgNVHQ8BAf8EBAMCBaAwHQYDVR0lBBYwFAYIKwYBBQUHAwEGCCsGAQUFBwMCMHMGA1UdHwRsMGowaKBmoGSGYmh0dHA6Ly9jcmwtdGVlbS1zdGctb3JlLWY1LnMzLnVzLXdlc3QtMi5hbWF6b25hd3MuY29tL2NybC85ZGFmNGVlNy1iOGNkLTRiODEtOWE0MC00YjU3MGY0N2VhYWUuY3JsMA0GCSqGSIb3DQEBCwUAA4IBAQApzkSnsfuNSMHxVmL78pOQ+Rxkz1uYSVT0k1W45iufVmP0ixd8hFPcfb8u1RoHZ/58Gl52JPCudAB2sc4k/lHNT9cKL4w5F8LybB8uNJXikAqzu4HFobRYMiPtVQ7M8cFz5SgvGclxzBAbZzK5u5xZuGSkI6tG9l+D5JhW2LesRuQSBQniBgRhmtAJB7SXuZ2sNKsq04h7DWcpdjCSferymeCOLQcgy5F3ragKML8zyuNeKqtvZnUzJElKoU8G+Oo7MQXO7P5n6HX0NLfqqisv8CfSJUZTa1IRcfFUDJrcHtCgzingalzLLKzyelqR+YeY+j21jwVdnDVZIkFid2He", "MIIFDjCCAvagAwIBAgIBBTANBgkqhkiG9w0BAQsFADCBhDELMAkGA1UEBhMCVVMxCzAJBgNVBAgTAldBMRgwFgYDVQQKEw9GNSBOZXR3b3JrcyBJbmMxHjAcBgNVBAsTFUNlcnRpZmljYXRlIEF1dGhvcml0eTEuMCwGA1UEAxMlRjUgSW50ZXJtZWRpYXRlIENlcnRpZmljYXRlIEF1dGhvcml0eTAeFw0xODEyMTMxOTU3NDlaFw0yODEyMTAxOTU3NDlaMIGnMQswCQYDVQQGEwJVUzETMBEGA1UECAwKV2FzaGluZ3RvbjEaMBgGA1UECgwRRjUgTmV0d29ya3MsIEluYy4xHjAcBgNVBAsMFUNlcnRpZmljYXRlIEF1dGhvcml0eTE1MDMGA1UEAwwsRjUgU1RHIElzc3VpbmcgQ2VydGlmaWNhdGUgQXV0aG9yaXR5IFRFRU0gVjExEDAOBgNVBAcMB1NlYXR0bGUwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQC1zQVzFAkzJdDMk+blcmQ506+GhWZOoe32rSWpkztdH7nYHtE6ITx44nHErRLOXXcYsf8nQZyV2RiE5Gyxwvdg3ClC9XqfT702FxFWLPpD/I53cRZasYH3dFfdvDztEOlTsUrMfo7Bzfh7ZMaMkBczHno0DdP61lp6pfzsQRLSfdaWxLKkCxc3P2xDUyx9F7uX3lXsT042OuiZpoCrMumO53hmvw6ZtP6mH7d6dM7nhYhTIGxRMYrzEAHKl+JM0Jnaabwxw4UBMkxozxP+kLvDXrwLADjMslEuVeq1r7WwNa33y8aXfBUZpDCgJKfYvvPQIUD5d6ui0v7vwAQRgX/fAgMBAAGjZjBkMB0GA1UdDgQWBBSw3St90A/RXS561RcPmQJEFGssQjAfBgNVHSMEGDAWgBRz1uVFvQMN0SWZ8zjGfQLZ+vrt6TASBgNVHRMBAf8ECDAGAQH/AgEBMA4GA1UdDwEB/wQEAwIBhjANBgkqhkiG9w0BAQsFAAOCAgEABB8ygsfvpId2OPMh3jnTtEpfcJy80yu7vFVSMDQ/4xKTBSR0iFcCNmMJ8i4PL0E8RqFzcsUaG9Rq2uyiW71Y/+QiC0/xN8pXTua9zH1aYPLKTa62IB5Dnfax+QccNCehCAoJ/W4yVeY9/nHbSlYt8+eOMSdUJf/hcaPuHbLs6rJI9GHo9CNeBtWH0q+Xw3rRAXSrNXMg+CRE55JOVaDdzRUOEdf962Pd/MRN7+Sypyj2dR9rCJ/SKxf0HQr6NOGSAc3QbLun0bzew/0Nlww8UpCXV/ABiBFUBDvIhapMQqoErMuPm0CvqBdVCWafOa8qylHHOCkEUxTlxtk3WTwEI4RcrHnHVO4eIkstLe8+4HvKvCwXwoDlcms44lIzQpoPvVclkYYKH0d9GjY1dDSXxYeIm7aPeA6VutQoTd8ozKqZFjueESJB7JATC1q5PSiOhNIUr1d9Y7CbTpLWAl7ktJt5yZlcJBd3+5wztuCtwfQncjERRl8Sey3UuCjD836E7d4ZPldKUaJpDKpdzXIiiwDWCTL3G1iPBz+O1YyPAoQz6NFUsiHDnuIaGMfYLouf0ltuHTBwzcQbkFtH7PeY5Qwts617AQBy5lCJ3HLdJ9Hg3CwTXlBqFR+T/8vF0n6+AuE0ZFjmbJYJs0m4EObk0IOcex4ft33fPDEFWRJpHIs=", "MIIGFzCCA/+gAwIBAgIBAjANBgkqhkiG9w0BAQsFADCBsDEYMBYGA1UEChMPRjUgTmV0d29ya3MgSW5jMSEwHwYDVQQLExhGNSBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkxHTAbBgkqhkiG9w0BCQEWDnJvb3RAbG9jYWxob3N0MRAwDgYDVQQHEwdTZWF0dGxlMQswCQYDVQQIEwJXQTELMAkGA1UEBhMCVVMxJjAkBgNVBAMTHUY1IFJvb3QgQ2VydGlmaWNhdGUgQXV0aG9yaXR5MB4XDTIyMDcyMTIxMTQxOVoXDTMyMDcxODIxMTQxOVowgYQxCzAJBgNVBAYTAlVTMQswCQYDVQQIEwJXQTEYMBYGA1UEChMPRjUgTmV0d29ya3MgSW5jMR4wHAYDVQQLExVDZXJ0aWZpY2F0ZSBBdXRob3JpdHkxLjAsBgNVBAMTJUY1IEludGVybWVkaWF0ZSBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkwggIiMA0GCSqGSIb3DQEBAQUAA4ICDwAwggIKAoICAQCg/uLiu6BbzIfZnehoaBepLVVQIeEgCUPxg6iHNANvlRC3FTElriLIDLJ3zAktdd3B1CSttG8sS4z3TKmN1+C1GXJRUZ2TlPRSaPBIhPs3xGFRgwBTJpTknY2oZITpfoDegAIuZcvfF5rwbcvndo2SiCbNHFytD/tIjWOJ+2a8k4T+8tBjaBxRygPSQycR6dciFo1ARJKfeWQV7Jkc0nzOd0T6JYh2Fjkyzx2EJca1zx88etIhfRg7XMo3SWLF6XJEoMBGoTeAAnE3oo+7KbBmcMYfcWGkwa/bOrBL4GCE/u3OS9z0wIoZ8/ExdIvwvXfYCrHO7Q7mW/TL9VbnXQjqQiUu6KUaw7SnP2VnqOmWxZyeKGMPnp1CDNzljo97NUq+YBXWNUMrdG/ahemcKoLQj6X9VNXrv5pE2u4HdsTHsXLE+bf4gvhWSPOoJR06d77C0eppMGmseYTIphvrFYbOkyUqJ3QPeh0alyRERPwZo7KWXbiWwwTs2Ya0IP4ndVxfnPJCAdyLs5dZcCPwaSZcqKS+ruGq/NCdpv9c4qQlog4cgPJaLjdvyhgttHxKFb8gLwensE2R5j2EKk/eDVSMZH7DMxAMVCOwAXC7yU//jzxbM79oLXJKtGUOqI5Lqo14oBQ9GN9jMadH7QIf98WUKxoI9jG2b7RVTaVI63xUuQIDAQABo2YwZDAdBgNVHQ4EFgQUc9blRb0DDdElmfM4xn0C2fr67ekwHwYDVR0jBBgwFoAUvt3/76pNZ1Iqkujy1aWYEmZs4bowEgYDVR0TAQH/BAgwBgEB/wIBATAOBgNVHQ8BAf8EBAMCAYYwDQYJKoZIhvcNAQELBQADggIBAF8EmEr06Legji041di2NbG42oQ0Jgaa4du/V9jloUp/N4Qo5t1upDrSQcEGdkLCgvGBDUKHaZWdJSRtoW4OxlNUfOeU0HEkt24TjwrW08eXDjmmDnqYjhPheeVJNMP2e0+Kj5l3ncTWPD/aS8HtZUdggpU8L9Y8vg6Tl143dZaePQEj+FHghmReIkRoJ2GT/hXFp17p0lTTlcjdRv/zU/Yvtp7F0JL8tjkMqy1Al5xZYDWZznamKdMUT71ikMFVHOVRgK4L+mfLGjA3rHT/hTWQ6EentQmWwv1+wG8fvShBL48YwIFCW02VxD/qdJjgcLGJ3KB9xxO2IBGo99bT2D1xLXgnu5odLWMIB3rUR2hKJWRJI+haODXgE8x+vzHjMpQjkv0Ud0TdL1/ULnLkW0rIiksRQvtWNXfJe33MnMx+P+cQ8wvpCbtcLZVVlnpqRmfiN+YK9stvZS0RKOi10WdR2tJpYOUi/tJ4dQ/u7erYUrmu/onVbe0M8P8w4CuDxhyEC3s1Gk4wppe9SqZgM2Op4FaRBzvm7oxMg27RngZ6BdK5JBlDY4SVXm5YxGkKMupTjXMo98pSn4mxlr5o4MU0YKsrUWENBM+MPUKb2rRRq0yyy0xsnvr33hr9OIlRjYYr06MiGHM5YLKxsJm73YivOhZKAwhWEHSA6uZ7dCvA", "MIIGFzCCA/+gAwIBAgIBATANBgkqhkiG9w0BAQsFADCBsDEYMBYGA1UEChMPRjUgTmV0d29ya3MgSW5jMSEwHwYDVQQLExhGNSBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkxHTAbBgkqhkiG9w0BCQEWDnJvb3RAbG9jYWxob3N0MRAwDgYDVQQHEwdTZWF0dGxlMQswCQYDVQQIEwJXQTELMAkGA1UEBhMCVVMxJjAkBgNVBAMTHUY1IFJvb3QgQ2VydGlmaWNhdGUgQXV0aG9yaXR5MB4XDTE3MTAzMTIyMTQ1OVoXDTI3MTAyOTIyMTQ1OVowgYQxCzAJBgNVBAYTAlVTMQswCQYDVQQIEwJXQTEYMBYGA1UEChMPRjUgTmV0d29ya3MgSW5jMR4wHAYDVQQLExVDZXJ0aWZpY2F0ZSBBdXRob3JpdHkxLjAsBgNVBAMTJUY1IEludGVybWVkaWF0ZSBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkwggIiMA0GCSqGSIb3DQEBAQUAA4ICDwAwggIKAoICAQCg/uLiu6BbzIfZnehoaBepLVVQIeEgCUPxg6iHNANvlRC3FTElriLIDLJ3zAktdd3B1CSttG8sS4z3TKmN1+C1GXJRUZ2TlPRSaPBIhPs3xGFRgwBTJpTknY2oZITpfoDegAIuZcvfF5rwbcvndo2SiCbNHFytD/tIjWOJ+2a8k4T+8tBjaBxRygPSQycR6dciFo1ARJKfeWQV7Jkc0nzOd0T6JYh2Fjkyzx2EJca1zx88etIhfRg7XMo3SWLF6XJEoMBGoTeAAnE3oo+7KbBmcMYfcWGkwa/bOrBL4GCE/u3OS9z0wIoZ8/ExdIvwvXfYCrHO7Q7mW/TL9VbnXQjqQiUu6KUaw7SnP2VnqOmWxZyeKGMPnp1CDNzljo97NUq+YBXWNUMrdG/ahemcKoLQj6X9VNXrv5pE2u4HdsTHsXLE+bf4gvhWSPOoJR06d77C0eppMGmseYTIphvrFYbOkyUqJ3QPeh0alyRERPwZo7KWXbiWwwTs2Ya0IP4ndVxfnPJCAdyLs5dZcCPwaSZcqKS+ruGq/NCdpv9c4qQlog4cgPJaLjdvyhgttHxKFb8gLwensE2R5j2EKk/eDVSMZH7DMxAMVCOwAXC7yU//jzxbM79oLXJKtGUOqI5Lqo14oBQ9GN9jMadH7QIf98WUKxoI9jG2b7RVTaVI63xUuQIDAQABo2YwZDAdBgNVHQ4EFgQUc9blRb0DDdElmfM4xn0C2fr67ekwHwYDVR0jBBgwFoAUvt3/76pNZ1Iqkujy1aWYEmZs4bowEgYDVR0TAQH/BAgwBgEB/wIBATAOBgNVHQ8BAf8EBAMCAYYwDQYJKoZIhvcNAQELBQADggIBAGgXhdFaLvqYyzBTsc2jrfJWvnwwQztwkk++R2vR5Skwhy1ke5+fycmaiwERtOuqqjq0pJpFJiO61T0wlm/vF2HqsMMibvNgrSCvGurGyCdVTKahYNKqHWsevhhnqjoGWSlm7hgVz5wtGQoyImJMa3+qFvMtOZSFpHzSlteinLucPrA4EEuTNh1RjRNmq7J0oAl3+PG5bK5DpySOh4jX119G7P9VhX+aLVangYi9ZkBJgmx4tmsg7Caqg7RF0tIsnTdad9uI+WKty/vsXDntb8zzonTg59BhW3zMcT1p6Xutz4WyC0BHeculq+8LtLO0G2Dxxzeik/V9Z03mOW8bscjkPh5GcXtwTdSZiyh1ewGtyR0Jcj6vYqBLkXQtfX5JERuCuFcb15NE1Mr3V91kdJs1WPPY7fcwgPVEdBCa4Yo/FrwzoKuYqQIE8jnLEX+YOAcS8VS1eurPRl7v5ZZSMU2RnacvXL9TJ/Wk32KgUCOLjy2O3MmaPZLnasgDVQGXOdP4Q2pp7TRwjvR3GJvLCFQtvKBOZO35EhvF0AwAxi5PmTwSL3k3zdYlYADIyyo1YMhiS/FQueo06dtyShsoSPtmo7Jthus9xKxoyQVih11UdDieR9ZdikNRX805w1jc5O0DWFkq9AKDxLYKUkE/MxuvXzXls9RFHSwKMvzfxa0r" ], "use": "sig" } ] }
5. Scalable Function CNI Binary¶
F5 created a CNI binary used here to move Scalable Function netdevice and RDMA devices inside of the dataplane container. This CNI is invoked by Multus delegation when attaching the Dataplane component to defined networks.
Bash Session
host# helm pull oci://repo.f5.com/utils/f5-eowyn --version 2.0.0-LA.1-0.0.11
host# tar zxvf f5-eowyn-2.0.0-LA.1-0.0.11.tgz
Example Output
Bash Session
host# tar zxvf f5-eowyn-2.0.0-LA.1-0.0.11.tgz
f5-eowyn/
f5-eowyn/sf
f5-eowyn/Chart.yaml
Note
The sf CNI must be copied to all DPU nodes in the /opt/cni/bin/ directory. For example:
Bash Session
host# scp f5-eowyn/sf root@<dpu-ip>:/opt/cni/bin/
6. Configure Network Attachment Definitions¶
Now that the CNI binary is installed we can configure Multus Network Attachment Definitions based on the configuration used in SR-IOV Device Plugin ConfigMap and using the sf CNI.\ Apply the network-attachments.yaml configuration to the default namespace.
This step will create two network attachment definitions for internal and external scalable functions as described in the lab diagram.
7. (Optional) Install Grafana and Prometheus¶
Using Prometheus and Grafana to collect and visualize the metrics.
Install Prometheus¶
Prometheus example for this lab is defined in the prometheus.yaml file.
Show Prometheus deployment
YAML
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: prometheus
spec:
secretName: prometheus-secret
issuerRef:
group: cert-manager.io
kind: ClusterIssuer
name: bnk-ca-cluster-issuer
duration: 8640h
privateKey:
rotationPolicy: Always
encoding: PKCS1
algorithm: RSA
size: 4096
revisionHistoryLimit: 10
commonName: f5net.com
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: prometheus
managedFields:
- apiVersion: apps/v1
name: prometheus
namespace: default
spec:
replicas: 1
selector:
matchLabels:
app: prometheus
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
type: RollingUpdate
template:
metadata:
annotations:
prometheus.io/port: "9090"
prometheus.io/scrape: "true"
labels:
app: prometheus
spec:
containers:
- args:
- '--storage.tsdb.retention.time=6h'
- '--storage.tsdb.path=/prometheus'
- '--config.file=/etc/prometheus/prometheus.yaml'
image: prom/prometheus
imagePullPolicy: Always
name: prometheus
ports:
- containerPort: 9090
name: web
protocol: TCP
volumeMounts:
- mountPath: /etc/prometheus
name: prometheus-config-volume
- mountPath: /prometheus
name: prometheus-storage-volume
- name: prometheus-volume
mountPath: /etc/ssl
readOnly: true
restartPolicy: Always
schedulerName: default-scheduler
volumes:
- configMap:
defaultMode: 420
name: prometheus-config
name: prometheus-config-volume
- name: prometheus-volume
secret:
secretName: prometheus-secret
- emptyDir: {}
name: prometheus-storage-volume
---
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: default
data:
prometheus.yaml: |
global:
scrape_interval: 15s
evaluation_interval: 15s
scrape_configs:
- job_name: 'k8s_pod'
kubernetes_sd_configs:
- role: pod
namespaces:
names:
- default
relabel_configs:
- source_labels: [__meta_kubernetes_pod_label_metrics_prometheus, __meta_kubernetes_pod_container_port_number]
regex: publish;9090
action: keep
- source_labels: [__meta_kubernetes_pod_name]
action: replace
target_label: pod_name
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: namespace
scheme: https
tls_config:
ca_file: "/etc/ssl/ca.crt"
cert_file: "/etc/ssl/tls.crt"
key_file: "/etc/ssl/tls.key"
insecure_skip_verify: true
---
apiVersion: v1
kind: Service
metadata:
name: prometheus-service
namespace: default
annotations:
prometheus.io/scrape: 'true'
prometheus.io/port: '9090'
spec:
selector:
app: prometheus
type: NodePort
ports:
- port: 8080
targetPort: 9090
nodePort: 30000
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: prometheus-default
rules:
- apiGroups:
- ""
resources:
- pods
- services
verbs:
- get
- list
- watch
- apiGroups:
- extensions
resources:
- ingresses
verbs:
- get
- list
- watch
- nonResourceURLs:
- /metrics
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: prometheus-default
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: prometheus-default
subjects:
- kind: ServiceAccount
name: default
namespace: default
Apply the file in default namespace
Bash
host# kubectl apply -f prometheus.yaml
Install Grafana¶
Grafana example for this lab is defined in the grafana.yaml file.
Show Grafana deployment
YAML
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: grafana
spec:
replicas: 1
selector:
matchLabels:
app: grafana
template:
metadata:
name: grafana
labels:
app: grafana
spec:
containers:
- name: grafana
image: grafana/grafana
ports:
- name: grafana
containerPort: 3000
resources:
limits:
memory: "1Gi"
cpu: "1000m"
requests:
memory: 500M
cpu: "500m"
volumeMounts:
- mountPath: /var/lib/grafana
name: grafana-storage
- mountPath: /etc/grafana/provisioning/datasources
name: grafana-datasources
readOnly: false
volumes:
- name: grafana-storage
emptyDir: {}
- name: grafana-datasources
configMap:
defaultMode: 420
name: grafana-datasources
---
apiVersion: v1
kind: ConfigMap
metadata:
name: grafana-datasources
data:
prometheus.yaml: |-
{
"apiVersion": 1,
"datasources": [
{
"access":"proxy",
"editable": true,
"name": "prometheus",
"orgId": 1,
"type": "prometheus",
"url": "http://prometheus-service.default.svc:8080",
"version": 1
}
]
}
---
apiVersion: v1
kind: Service
metadata:
name: grafana
annotations:
prometheus.io/scrape: 'true'
prometheus.io/port: '3000'
spec:
selector:
app: grafana
type: NodePort
ports:
- port: 3000
targetPort: 3000
nodePort: 32000
Apply the file in default namespace
Bash
host# kubectl apply -f grafana.yaml
Grafana Dashboard¶
An example Grafana dashboard is provided in the grafana-dashboard.json file.
Show Grafana Dashboard
JSON
{
"dashboard": {
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "datasource",
"uid": "grafana"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"target": {
"limit": 100,
"matchAny": false,
"tags": [],
"type": "dashboard"
},
"type": "dashboard"
}
]
},
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": 1,
"links": [],
"panels": [
{
"collapsed": true,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 0
},
"id": 38,
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "Bps"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 0,
"y": 1
},
"id": 14,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"exemplar": true,
"expr": "rate(f5_ingress_system_disk_io{}[$__rate_interval])",
"interval": "",
"legendFormat": "{{device}}-{{direction}}",
"refId": "A"
}
],
"title": "F5 Ingress Disk IO",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "iops"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 6,
"y": 1
},
"id": 16,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"exemplar": true,
"expr": "rate(f5_ingress_system_disk_operation_time{}[$__rate_interval])",
"hide": false,
"interval": "",
"legendFormat": "{{device}}-{{direction}}",
"refId": "A"
}
],
"title": "F5 Ingress Disk Operation Time",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 12,
"y": 1
},
"id": 12,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"exemplar": true,
"expr": "f5_ingress_system_cpu_time{}",
"interval": "",
"legendFormat": "{{cpu}}",
"refId": "A"
}
],
"title": "F5 Ingress System CPU Time(Idle)",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 17,
"y": 1
},
"id": 10,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"exemplar": true,
"expr": "f5_ingress_system_memory_usage{}",
"interval": "",
"legendFormat": "",
"refId": "A"
}
],
"title": "F5 Ingress System Memory Usage",
"type": "timeseries"
}
],
"title": "Controller",
"type": "row"
},
{
"collapsed": true,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 1
},
"id": 37,
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 5,
"x": 0,
"y": 2
},
"id": 4,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_0_cpu_usage_15mins{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_2_cpu_usage_15mins{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM CPU Usage 15 mins",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 5,
"x": 5,
"y": 2
},
"id": 2,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_0_memory_used{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_2_memory_total{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM System Memory Usage",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"description": "",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 5,
"x": 10,
"y": 2
},
"id": 33,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_1_counters_pkts_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_1_counters_pkts_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM Interface 1.1 Packets In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"description": "",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 5,
"x": 15,
"y": 2
},
"id": 32,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_1_counters_bytes_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_1_counters_bytes_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM Interface 1.1 Bytes In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 0,
"y": 11
},
"id": 6,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_0_server_side_traffic_bytes_out{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_2_server_side_traffic_bytes_in{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM Network Bytes In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 5,
"y": 11
},
"id": 8,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_0_server_side_traffic_pkts_out{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_tmm_stat_2_server_side_traffic_pkts_in{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{name}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM Network Packets In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 10,
"y": 11
},
"id": 26,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_2_counters_bytes_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_2_counters_bytes_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "F5 TMM Interface 1.2 Bytes In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 15,
"y": 11
},
"id": 28,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_2_counters_pkts_in{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_interface_stat_1_2_counters_pkts_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "C"
}
],
"title": "F5 TMM Interface 1.2 Pkts In/Out",
"type": "timeseries"
}
],
"title": "TMM",
"type": "row"
},
{
"collapsed": true,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 2
},
"id": 35,
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 0,
"y": 3
},
"id": 34,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"editorMode": "code",
"expr": "f5_tmm_fw_context_stat_1_packets_reject{}",
"legendFormat": "{{tmmID}}",
"range": true,
"refId": "A"
}
],
"title": "ACL Rejected",
"type": "timeseries"
}
],
"title": "ACL",
"type": "row"
},
{
"collapsed": true,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 3
},
"id": 40,
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 0,
"y": 4
},
"id": 20,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_serverside_pkts_out{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_serverside_pkts_in{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Packets In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 5,
"y": 4
},
"id": 24,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_clientside_pkts_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_clientside_pkts_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Client Packets In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 11,
"y": 4
},
"id": 30,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_clientside_cur_conns{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_clientside_tot_conns{}",
"hide": false,
"interval": "",
"legendFormat": "{{namespace}}-{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Connections",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 17,
"y": 4
},
"id": 18,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_serverside_bytes_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_blue_gatewayapi_l4_tcp_app_0_virtual_server_serverside_bytes_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Bytes In/Out",
"type": "timeseries"
}
],
"title": "Blue Tenant",
"type": "row"
},
{
"collapsed": true,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 4
},
"id": 39,
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 0,
"y": 5
},
"id": 41,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_serverside_pkts_out{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_serverside_pkts_in{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Packets In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 5,
"y": 5
},
"id": 42,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_clientside_pkts_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_clientside_pkts_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Client Packets In/Out",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 11,
"y": 5
},
"id": 43,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_clientside_cur_conns{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_clientside_tot_conns{}",
"hide": false,
"interval": "",
"legendFormat": "{{namespace}}-{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Connections",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "P1809F7CD0C75ACF3"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbits"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 5,
"x": 17,
"y": 5
},
"id": 44,
"options": {
"legend": {
"calcs": [],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.5.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_serverside_bytes_in{}",
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "prometheus"
},
"editorMode": "code",
"exemplar": true,
"expr": "f5_tmm_virtual_server_stat_red_gatewayapi_l4_tcp_app_0_virtual_server_serverside_bytes_out{}",
"hide": false,
"interval": "",
"legendFormat": "{{tmmID}}-{{column}}",
"range": true,
"refId": "B"
}
],
"title": "Virtual Server Bytes In/Out",
"type": "timeseries"
}
],
"title": "Red Tenant",
"type": "row"
}
],
"preload": false,
"refresh": "",
"schemaVersion": 40,
"tags": [],
"templating": {
"list": []
},
"time": {
"from": "now-1h",
"to": "now"
},
"timepicker": {},
"timezone": "",
"title": "F5 BNK Dashboard",
"uid": null,
"id": null,
"version": 4,
"weekStart": ""
}
}
Import the dashboard into Grafana
Bash
host# kubectl -n grafana port-forward svc/grafana 3000:3000 &
host# curl -X POST -H 'Content-Type: application/json' -d @grafana-dashboard.json http://admin:admin@localhost:3000/api/dashboards/db
7. Install BIG-IP Next for Kubernetes Operator in default namespace¶
The operator helps in installing BIG-IP Next for Kubernetes software. It requires two Custom Resources to be defined for the installation. SPKInfrastructure to describe dataplane infrastructure connections, and SPKInstance which declares the state and configuration of the BNK product installation.
Install the Operator chart¶
Bash
host# helm install orchestrator oci://repo.f5.com/charts/orchestrator \
--version v0.0.25-0.0.96 \
--set global.imagePullSecrets[0].name=far-secret \
--set image.repository=repo.f5.com/images \
--set image.pullPolicy=Always
SPKInfrastructure Custom Resource¶
SPKInfrastructure resource includes refernces to the Network Attachment Definitions created earlier, and the resources provisioned for these networks as configured in the SR-IOV device plugin section.
The SPKInfrastructure resources is defined here infrastructure-cr.yaml.
Show SPKInfrastructure content
YAML
apiVersion: charts.k8s.f5net.com/v1alpha1
kind: SPKInfrastructure
metadata:
name: bnk-dpu-infra
spec:
networkAttachment:
- name: default/sf-external
- name: default/sf-internal
platformType: other
hugepages: true
sriovResources:
nvidia.com/bf3_p0_sf: "1"
nvidia.com/bf3_p1_sf: "1"
wholeClusterMode: "enabled"
calicoRouter: "default"
egress:
json:
ipPoolCidrInfo:
cidrList:
- name: vlan_cidr
value: "192.168.20.0/24"
- name: vlan_ipv6_cidr
value: "2001::192:168:20:0/112"
ipPoolList:
- name: default-ipv4-ippool
value: "10.244.0.0/16"
Install required Otel Certificates¶
Otel service requires certificates to be installed with specific name. These certs will be used for TLS communication between Otel and Prometheus.
Certificate requests for this lab can be found at otel-certs.yaml.
Show Otel Certificates content
YAML
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: external-otelsvr
spec:
subject:
countries:
- US
provinces:
- Washington
localities:
- Seattle
organizations:
- F5 Networks
organizationalUnits:
- PD
emailAddresses:
- clientcert@f5net.com
commonName: f5net.com
# SecretName is the name of the secret resource that will be automatically created and managed by this Certificate resource.
# It will be populated with a private key and certificate, signed by the denoted issuer.
secretName: external-otelsvr-secret
# IssuerRef is a reference to the issuer for this certificate.
issuerRef:
group: cert-manager.io
kind: ClusterIssuer
name: bnk-ca-cluster-issuer
# Lifetime of the Certificate is 360 days.
duration: 8640h
privateKey:
rotationPolicy: Always
encoding: PKCS1
algorithm: RSA
size: 4096
revisionHistoryLimit: 10
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: external-f5ingotelsvr
spec:
subject:
countries:
- US
provinces:
- Washington
localities:
- Seattle
organizations:
- F5 Networks
organizationalUnits:
- PD
emailAddresses:
- clientcert@f5net.com
commonName: f5net.com
secretName: external-f5ingotelsvr-secret
issuerRef:
group: cert-manager.io
kind: ClusterIssuer
name: bnk-ca-cluster-issuer
duration: 8640h
privateKey:
rotationPolicy: Always
encoding: PKCS1
algorithm: RSA
size: 4096
revisionHistoryLimit: 10
Apply the certificates to the default namespace.
Bash
host# kubectl apply -f otel-certs.yaml
SPKInstance Custom Resource¶
Download or copy the instance-cr-otel.yaml file and modify the jwt: with your license token obtained from MyF5.
Show SPKInstance content
YAML
apiVersion: charts.k8s.f5net.com/v1alpha1
kind: SPKInstance
metadata:
name: bnk-dpu
namespace: default
spec:
controller:
watchNamespace: red,blue
cwc:
persistence:
enabled: true
size: 20Gi
cpclConfig:
jwt: <replace-with-jwt-token>
operationMode: connected
global:
certmgr:
issuerRef:
group: cert-manager.io
kind: ClusterIssuer
name: bnk-ca-cluster-issuer
imagePullSecrets:
- name: far-secret
imageRepository: repo.f5.com/images
logging:
fluentbitSidecar:
enabled: true
fluentd:
host: f5-toda-fluentd.f5-utils.svc.cluster.local
port: "54321"
spkInfrastructure: bnk-dpu-infra
spkManifest: unused
afm:
enabled: true
pccd:
enabled: true
blob:
maxFwBlobSizeMb: "512"
maxNatBlobSizeMb: "512"
tmm:
replicaCount: 1
nodeAssign:
nodeSelector:
app: f5-tmm
tolerations:
- key: "dpu"
value: "true"
operator: "Equal"
palCPUSet: "8-15"
usePhysMem: true
tmmMapresHugepages: 6144
resources:
limits:
cpu: "8"
hugepages-2Mi: 13Gi
memory: 2Gi
debug:
enabled: true
resources:
limits:
cpu: 200m
memory: 100Mi
requests:
cpu: 200m
memory: 100Mi
xnetDPDKAllow:
- auxiliary:mlx5_core.sf.4,dv_flow_en=2
- auxiliary:mlx5_core.sf.5,dv_flow_en=2
blobd:
enabled: true
resources:
limits:
cpu: "1"
memory: "1Gi"
requests:
cpu: "1"
memory: "1Gi"
dynamicRouting:
enabled: false
configMapName: spk-bgp
tmrouted:
resources:
limits:
cpu: "300m"
memory: "512Mi"
requests:
cpu: "300m"
memory: "512Mi"
tmmRouting:
resources:
limits:
cpu: "700m"
memory: "512Mi"
requests:
cpu: "700m"
memory: "512Mi"
sessiondb:
useExternalStorage: "true"
Ensure that all pods in default and f5-utils namespaces are healthy. This can take up to 10 minutes.
